Secrets test/Encrypting Confidential Data at Rest

The reason the application is failed is because we have not created the secrets yet. Create a new secret named db-secret with the data given below.

You may follow any one of the methods discussed in lecture to create the secret.

• Secret Name: db-secret
• Secret 1: DB_Host=sql01
• Secret 2: DB_User=root
• Secret 3: DB_Password=password123

kubectl create secret generic --help
# Create a new secret named my-secret with key1=supersecret and key2=topsecret
kubectl create secret generic my-secret --from-literal=key1=supersecret --from-literal=key2=topsecret

k create secret generic db-secret --from-literal=DB_host=sql01 --from-literal=DB_User=root --from-literal=DB_Password=password123



Configure webapp-pod to load environment variables from the newly created secret.

apiVersion: v1
kind: Pod
metadata:
  name: envfrom-secret
spec:
  containers:
  - name: envars-test-container
    image: nginx
    envFrom:
    - secretRef:
        name: test-secret

https://kubernetes.io/docs/tasks/inject-data-application/distribute-credentials-secure/

Distribute Credentials Securely Using Secrets



---

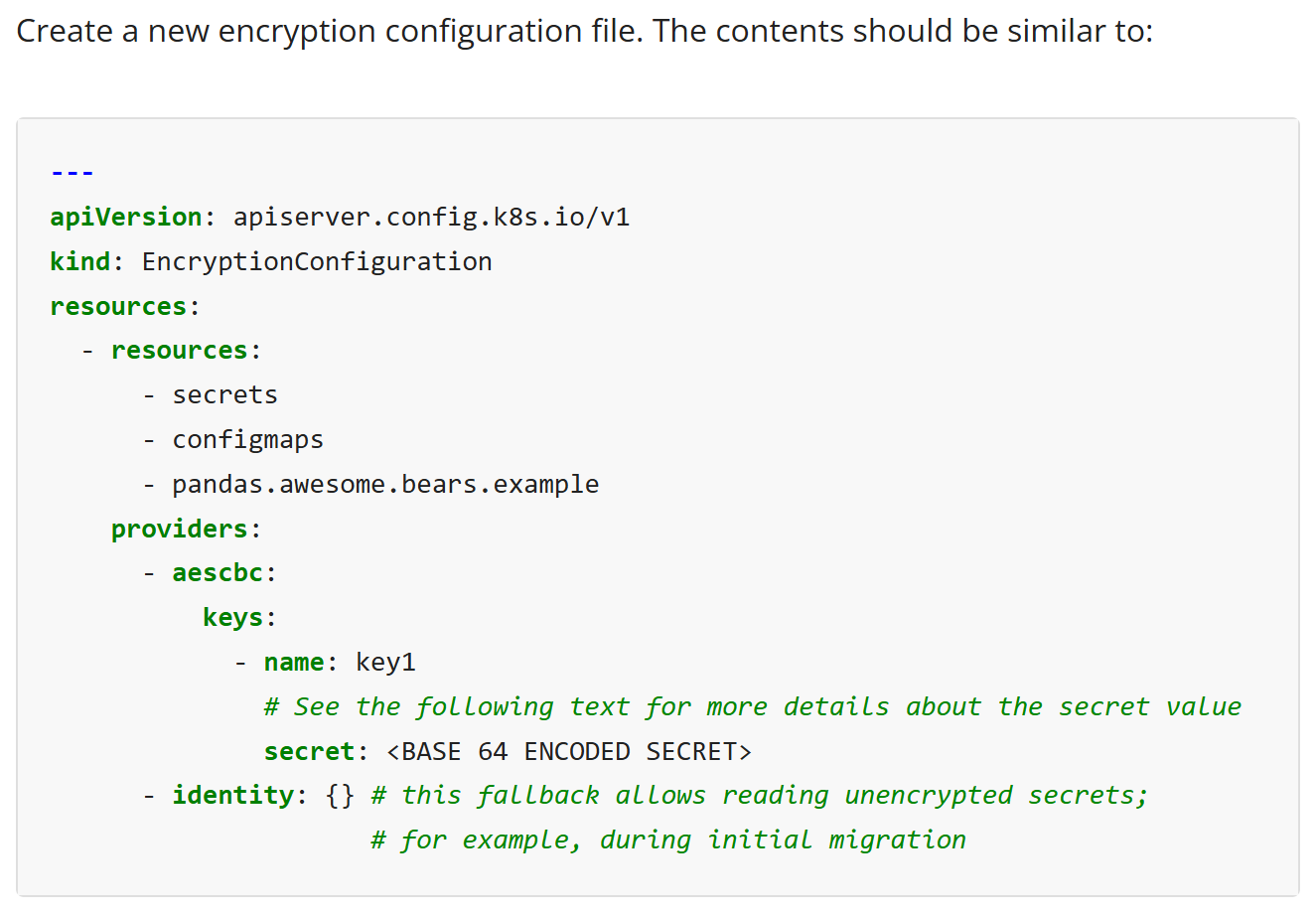

https://kubernetes.io/docs/tasks/administer-cluster/encrypt-data/

Encrypting Confidential Data at Rest

Encrypting Confidential Data at Rest

$$$ kubectl create secret generic my-secret --from-literal=key1=supersecret
secret/my-secret created

$$$ kubectl get secret my-secret -o yaml
apiVersion: v1
data:
  key1: c3VwZXJzZWNyZXQ=
kind: Secret
metadata:
  creationTimestamp: "2025-01-09T00:13:34Z"
  name: my-secret
  namespace: default
  resourceVersion: "618434"
  uid: 00fe1b20-129d-4272-aa8c-7de9e48b7bfd
type: Opaque

$$$ kubectl get secret my-secret
NAME        TYPE     DATA   AGE
my-secret   Opaque   1      35s

kubectl describe secrets my-secret
Name:         my-secret
Namespace:    default
Labels:       <none>
Annotations:  <none>

Type:  Opaque

Data
====
key1:  11 bytes

$$$ echo "c3VwZXJzZWNyZXQ=" | base64 --decode
supersecret

ETCDCTL_API=3 etcdctl \
   --cacert=/etc/kubernetes/pki/ca.crt   \
   --cert=/etc/kubernetes/pki/server.crt \
   --key=/etc/kubernetes/pki/server.key  \
   get /registry/secrets/default/my-secret | hexdump -C

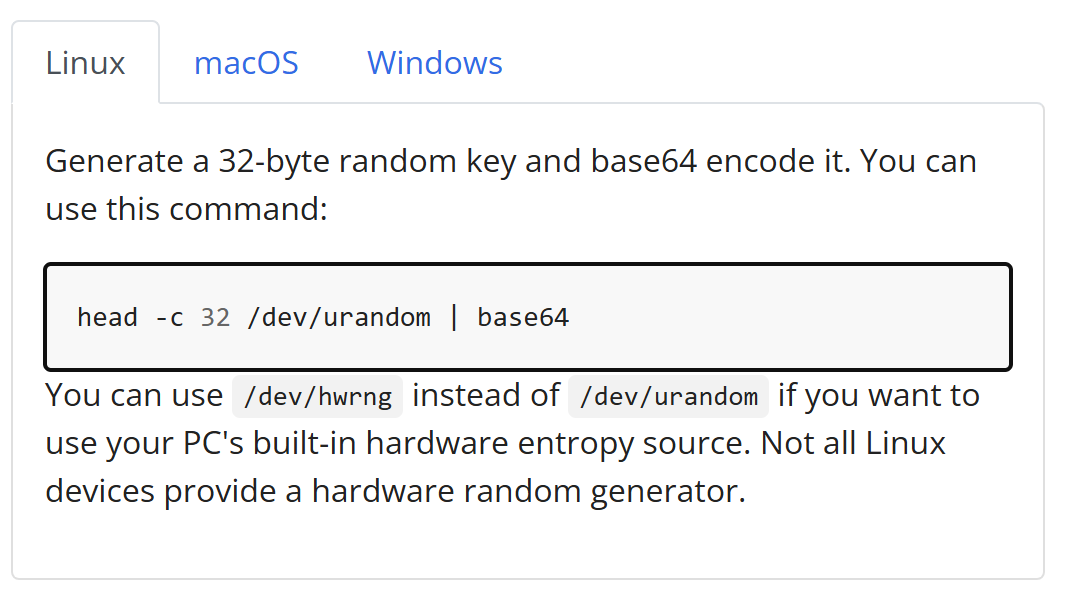

Encrypt your data



kube spray로 설치시 경로가 달라짐

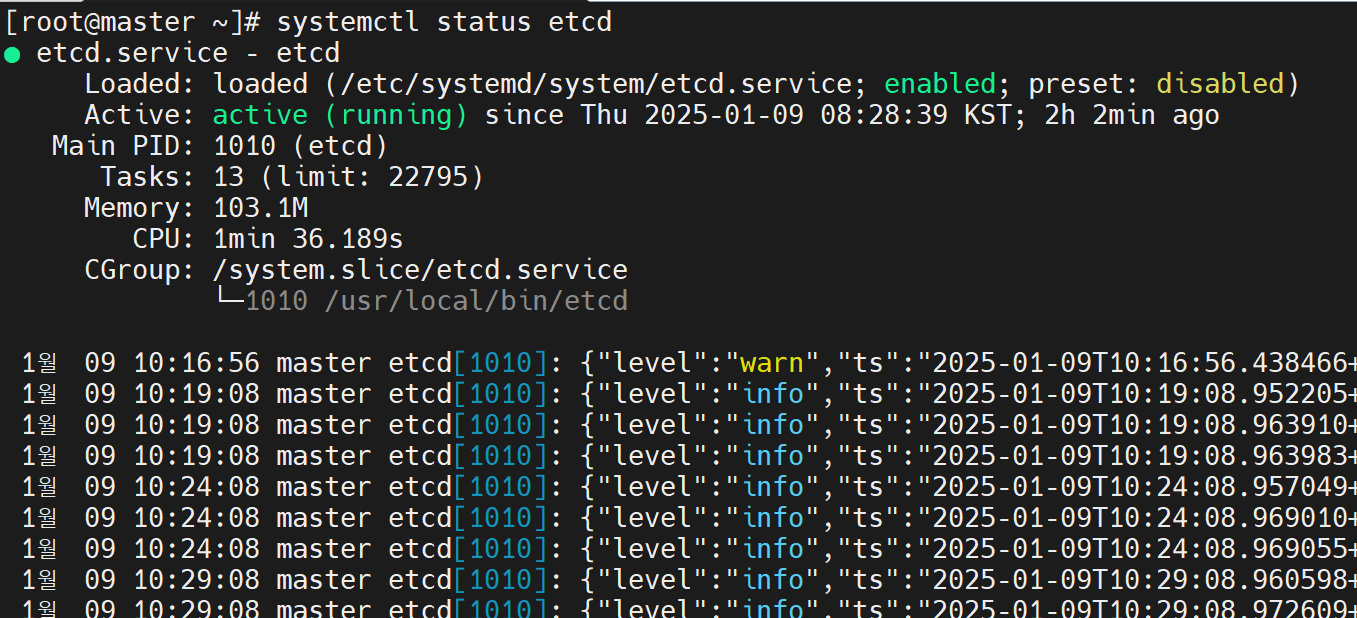

etcd도 systemd 아래에 설치되어 운영됨

/etc/ssl/etcd/ssl/ 디렉토리에 있는 각 파일의 역할은 다음과 같습니다:

1. ca.pem:
   • etcd 클러스터에서 사용하는 CA 인증서입니다.
   • --cacert 옵션에 사용됩니다.
2. ca-key.pem:
   • CA 인증서를 생성하기 위한 키 파일입니다. 일반적으로 클라이언트 명령어에는 필요하지 않습니다.
3. admin-master.pem:
   • etcd 클러스터 관리용 클라이언트 인증서입니다.
   • --cert 옵션에 사용됩니다.
4. admin-master-key.pem:
   • admin-master.pem에 대한 개인 키입니다.
   • --key 옵션에 사용됩니다.
5. member-master-key.pem, node-master-key.pem, 등:
   • etcd 멤버 노드와 관련된 키 파일입니다. 일반적으로 클라이언트 명령어에는 필요하지 않습니다.

ETCDCTL_API=3 etcdctl   --endpoints=https://127.0.0.1:2379   --cacert=/etc/ssl/etcd/ssl/ca.pem   --cert=/etc/ssl/etcd/ssl/admin-master.pem   --key=/etc/ssl/etcd/ssl/admin-master-key.pem   get / --prefix --keys-only | head



/registry/apiextensions.k8s.io/customresourcedefinitions/bgpconfigurations.crd.projectcalico.org

/registry/apiextensions.k8s.io/customresourcedefinitions/bgpfilters.crd.projectcalico.org

/registry/apiextensions.k8s.io/customresourcedefinitions/bgppeers.crd.projectcalico.org

/registry/apiextensions.k8s.io/customresourcedefinitions/blockaffinities.crd.projectcalico.org

/registry/apiextensions.k8s.io/customresourcedefinitions/caliconodestatuses.crd.projectcalico.org
.
.
.
.
.

ETCDCTL_API=3 etcdctl \
  --endpoints=https://127.0.0.1:2379 \
  --cacert=/etc/ssl/etcd/ssl/ca.pem \
  --cert=/etc/ssl/etcd/ssl/admin-master.pem \
  --key=/etc/ssl/etcd/ssl/admin-master-key.pem \
  get /registry/secrets/default/my-secret | hexdump -C
00000000  2f 72 65 67 69 73 74 72  79 2f 73 65 63 72 65 74  |/registry/secret|
00000010  73 2f 64 65 66 61 75 6c  74 2f 6d 79 2d 73 65 63  |s/default/my-sec|
00000020  72 65 74 0a 6b 38 73 3a  65 6e 63 3a 61 65 73 63  |ret.k8s:enc:aesc|
00000030  62 63 3a 76 31 3a 6b 65  79 31 3a 58 70 28 1d e4  |bc:v1:key1:Xp(..|
00000040  b7 ff 4a 79 aa f5 fb 08  b6 c7 57 e5 dd 92 04 5e  |..Jy......W....^|
00000050  a5 95 ef d7 46 96 55 c7  b9 e2 96 91 82 d4 3f 3c  |....F.U.......?<|
00000060  fd cd 25 81 c0 ff 84 50  63 f5 99 d3 dc 7c 9e 9f  |..%....Pc....|..|
00000070  a8 56 56 e9 62 d0 0c 3c  29 27 49 8b d9 b4 93 48  |.VV.b..<)'I....H|
00000080  8e c9 9a 03 02 32 d5 61  ff 6e f1 e6 a0 73 f0 af  |.....2.a.n...s..|
00000090  d0 1e 6c d0 22 34 d3 46  0d 75 7e 2a 27 42 fd 9d  |..l."4.F.u~*'B..|
000000a0  96 28 f2 c9 0d 77 ad fc  82 db 4e e4 8f c9 bf 11  |.(...w....N.....|
000000b0  0f 88 75 e9 bc 56 9e ef  1d 18 0c 18 49 cf a5 04  |..u..V......I...|
000000c0  7e 56 a0 e4 f5 51 fb 8d  44 f2 99 24 e0 bc e0 d6  |~V...Q..D..$....|
000000d0  6d 4a c7 1e 78 ec e1 bd  54 6f e9 7a 2c 5d 26 ef  |mJ..x...To.z,]&.|
000000e0  2c c3 2b 56 b8 6a 69 1c  4a 62 f5 58 6b ef 12 92  |,.+V.ji.Jb.Xk...|
000000f0  47 08 fc 61 a1 01 00 8d  98 92 e0 72 52 75 73 a8  |G..a.......rRus.|
00000100  cd 8d df 22 0a db 24 4a  e8 6c f1 33 0b 60 4b 94  |..."..$J.l.3.`K.|
00000110  4b e8 c2 3c 39 45 9e d2  48 39 ba dd 01 b6 6d 93  |K..<9E..H9....m.|
00000120  22 d4 04 fa 2f ba ac 84  ce f4 63 af 31 28 b5 f0  |".../.....c.1(..|
00000130  0c a1 ab 9f 86 6d dd 3c  1f 4a f8 0a              |.....m.<.J..|
0000013c
[root@master ~]# ETCDCTL_API=3 etcdctl   --endpoints=https://127.0.0.1:2379   --cacert=/etc/ssl/etcd/ssl/ca.pem   --cert=/etc/ssl/etcd/ssl/admin-master.pem   --key=/etc/ssl/etcd/ssl/admin-master-key.pem   get /registry/secrets/default/my-secret4 | hexdump -C
00000000  2f 72 65 67 69 73 74 72  79 2f 73 65 63 72 65 74  |/registry/secret|
00000010  73 2f 64 65 66 61 75 6c  74 2f 6d 79 2d 73 65 63  |s/default/my-sec|
00000020  72 65 74 34 0a 6b 38 73  3a 65 6e 63 3a 61 65 73  |ret4.k8s:enc:aes|
00000030  63 62 63 3a 76 31 3a 6b  65 79 31 3a f4 d4 08 f8  |cbc:v1:key1:....|
00000040  76 dd e0 ce 4a c7 81 47  4e 21 44 7f 80 5b bc 6c  |v...J..GN!D..[.l|
00000050  ec 1c a6 2a dc 05 e3 64  bb 8d dd c9 7c de ed 08  |...*...d....|...|
00000060  e7 88 9c 9d 28 c3 e8 1d  b4 f4 bd 04 d8 b2 04 c0  |....(...........|
00000070  fd ac 7e 4b af d0 31 ef  7b 79 37 85 a9 15 99 68  |..~K..1.{y7....h|
00000080  30 d4 52 54 39 1d 93 94  b7 c5 ac 45 c9 ff 39 1b  |0.RT9......E..9.|
00000090  c9 c6 dc 08 5c 67 42 eb  07 8b 8a 78 dd 5f 74 05  |....\gB....x._t.|
000000a0  2f 1f 05 35 cc d0 68 5f  4b 1a 82 2f a7 03 bd a3  |/..5..h_K../....|
000000b0  83 26 70 5b 21 25 55 5f  48 ad 17 c9 bb b2 25 cf  |.&p[!%U_H.....%.|
000000c0  4b 76 3b 8e 01 5d 2f 21  c9 55 0b fd f7 49 3e 15  |Kv;..]/!.U...I>.|
000000d0  bb e2 02 78 4f 6b ea 3d  e1 f6 46 a6 31 64 bf d9  |...xOk.=..F.1d..|
000000e0  95 6d b7 38 03 22 26 43  7b 0d ce 53 6b 3f a0 c7  |.m.8."&C{..Sk?..|
000000f0  b7 f8 04 e9 53 74 f9 88  cd 16 30 bd 7e ac 5a 8d  |....St....0.~.Z.|
00000100  e9 a3 ef e9 f6 b3 43 01  66 d5 9c 28 4c d4 b8 93  |......C.f..(L...|
00000110  62 fd 7f 13 84 9e 07 68  84 fb ef c6 81 1e e4 a4  |b......h........|
00000120  64 5e da 07 13 72 6b 01  5c 4c 20 e5 36 51 5e 60  |d^...rk.\L .6Q^`|
00000130  9c 5c 52 9e fb b6 7c c4  12 81 d5 89 0a           |.\R...|......|
0000013d
